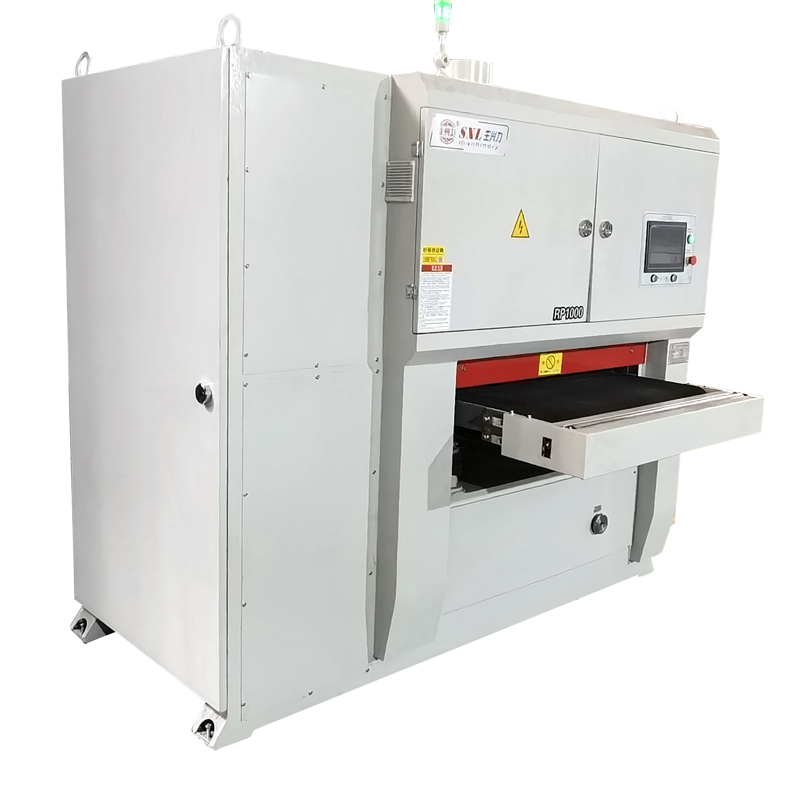

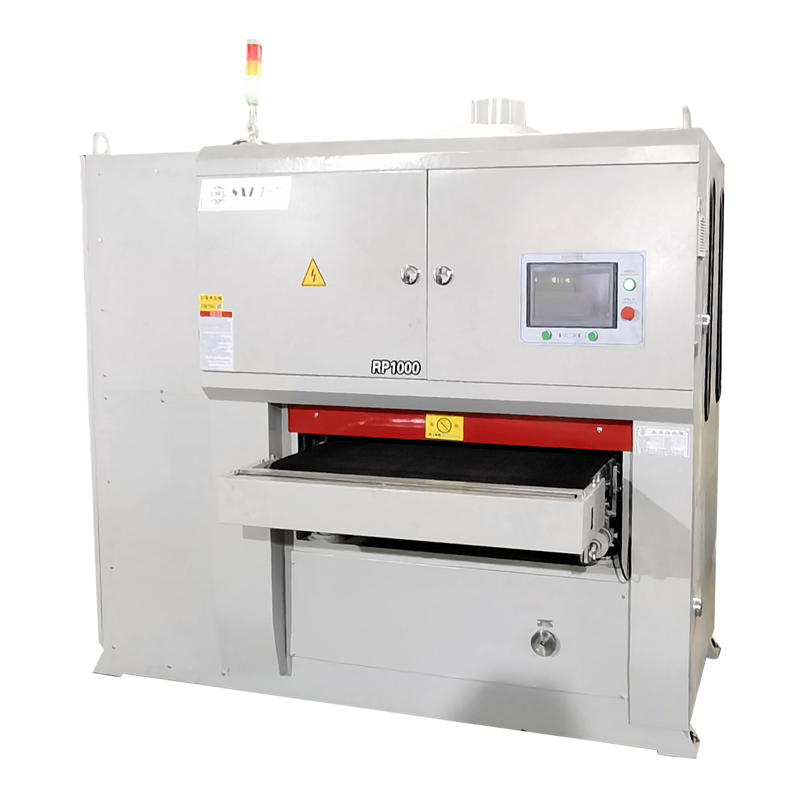

DRR-WX series dry abrasive belt grinding equipment is used for laser cutting parts, flame cutting parts, plasma cutting parts, deburring, demelting slag, chamfered wire drawing, etc.
Configuration of various module combinations, deburring chamfered wire drawing, with wet dust removal machine safe and efficient production.
Suitable for stainless steel, iron plate, copper plate, alloy plate, aluminum plate and so on after cutting, according to the different surface requirements of the workpiece adjust the selection of different mesh and polishing wheel surface deburring chamfering polishing drawing.
Device functions:
DRR-WX series dry sand belt + rolling brush + grinding machine is suitable for all kinds of flat plate parts surface drawing, polishing, scratch removal, longitudinal burr removal, chamfering, skin removal, hair drawing, fixed thickness and other processing.

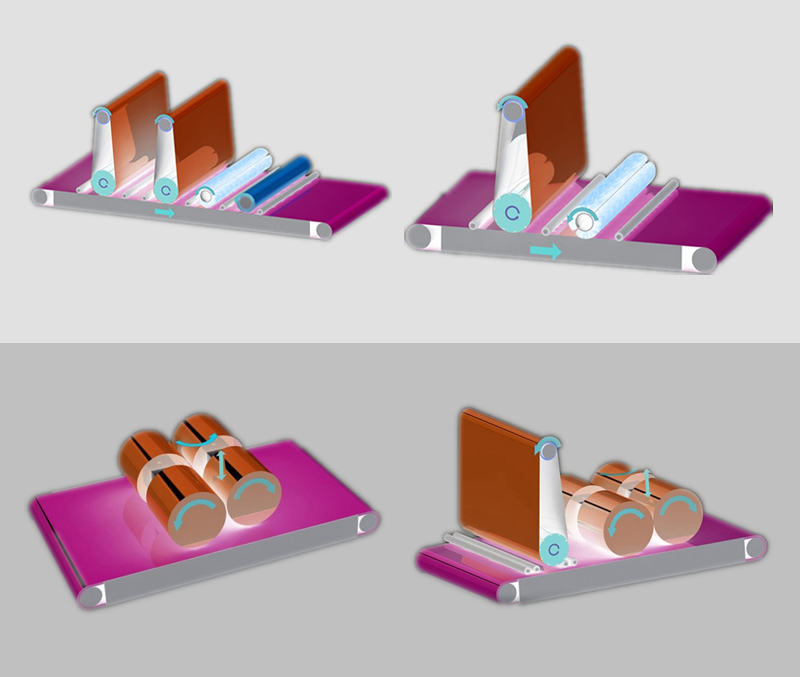

Equipment combination: Single or multiple modular combination of belt + hammer + universal wheel + disk brush + polishing wheel
Equipment processing width: 400mm, 600mm, 800mm, 1000mm, 1300mm, 1600mm, 2000mm, 2200mm
Equipment features:
(1) Magnetic adsorption suitable for all kinds of carbon steel metal parts;
(2) vacuum negative pressure adsorption feeding (suitable for stainless steel plate, copper plate, aluminum plate, etc., is not magnetically adsorbed. Workpiece size ≥50mm×50mm);
(3) Rubber roller + rubber roller clip feed (suitable for large and heavy workpieces. Workpiece length Workpiece length ≥180mm;
(4) Wet dust collector with environmental protection and safe production.
(5) Simple operation, stable equipment, precise column lifting.

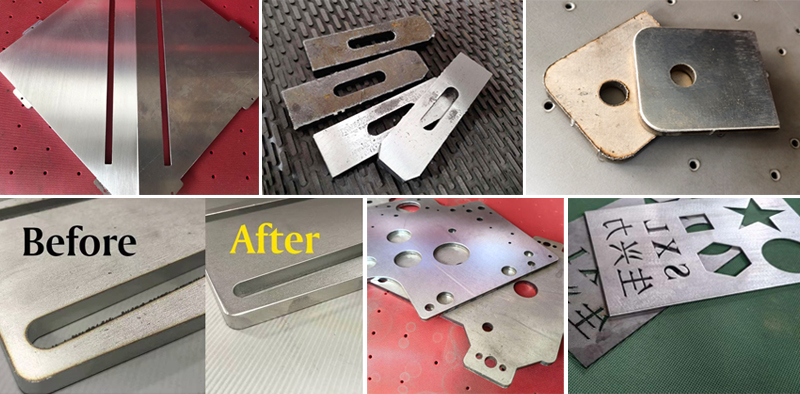

Comparison of processed products:
★Can be customized according to different requirements of customers
